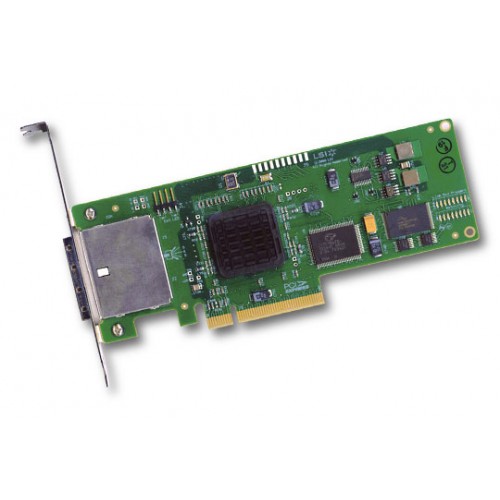

LSI SAS 3801E

LSI SAS 3801E
LSISAS3801E HOST BUS ADAPTER

PCI Bus: PCI Express x8 lanes
PCI Modes: Bus Master DMA
PCI Card Type: 3.3 Volt Add-in Card
PCI Voltage: +12V ±10%
PCI Form Factor: 6.6” x 2.7” (Low Profile)
PCI Power: 7.5W
Bracket: Full Height and Low Profile
PCI Certification: PCI Express 1.0a
I/O Bus: Eight External 3GB/s SAS/SATA Ports
SAS Processor: LSISAS1068E
Connectors
Internal: N/A
External: Two miniSAS x4 Connectors (SFF8088)
LED Indicators: Activity per PHY (8) Fault per PHY (8)
Max. Number of Physical Devices: 244
Environments Operating: 0°C to 60°C, 5 to 90% Non-condensing
Storage: -45°C to 105°C, 5 to 90% Non-condensing
MTFB: >200,000 Hours
Compliances: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/ New Zealand (AS/NZS 3548); Safety: EN60950
OS Support: Microsoft Windows 2000, Server 2003 32-bit and 64-bit (x86 and AMD64), XP, Red Hat Linux RHEL 3, Novell NetWare 5.1 and 6.5, SuSE? Linux/SLES, Sun SPARC Solaris 2.6 thru 2.10
