LSI SAS 9207-4i4e

LSI SAS 9207-4i4e

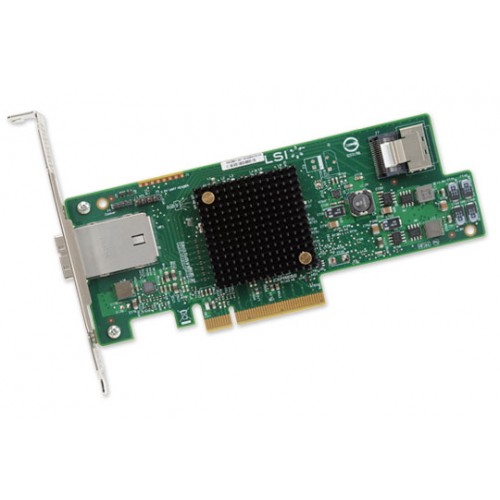

LSI SAS 9207-4i4e HOST BUS ADAPTER

IO Controller: LSI SAS2308 / Fusion MPT 2.0
Storage Connectivity: 8 ports
Data Transfer Rates: 6Gb/s SAS 2.1 Compliant
SAS Bandwidth: Half Duplex, 600 MB/s per lane
Port Configurations: 4 ea, x1 internal ports (individual drives);
                     4 ea, x1 external ports
                     1ea, x4 external wide port
Host Bus: x8 lane, PCI Express 3.0 compliant
PCI Data Burst Transfer Rates: Half Duplex
                                                 x8, PCIe, 8000 MB/s
Physical Dimensions: Low Profile (2.6" x 6.6")
Connectors: One x 4 internal mini-SAS (SFF8087), One x4 external mini-SAS (SFF8088)
Brackets: Full height and low profile
Cable Support: Passive Copper
Operating Voltage: +12V +/-8%; 3.3V +/-8%
PCI Power (Nominal): 9.8W typical, Airflow 200 LFM
Device Support: 256 Non-RAID SAS/SATA devices
Environmental: Operating  Storage
               0°C to 55°C  -45°C to 105°C
               5 to 90% Non-condensing  5 to 90% Non-condensing
MTBF: >2,000,000 hours
Regulatory Certifications: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024);
Australia/New Zealand (AS/NZS 3548); Safety: EN60950; RoHS; WEEE
OS Support: Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD
            See http://www.lsi.com/support/pages/downloads.aspx for details on versions
