LPe111

LPe111

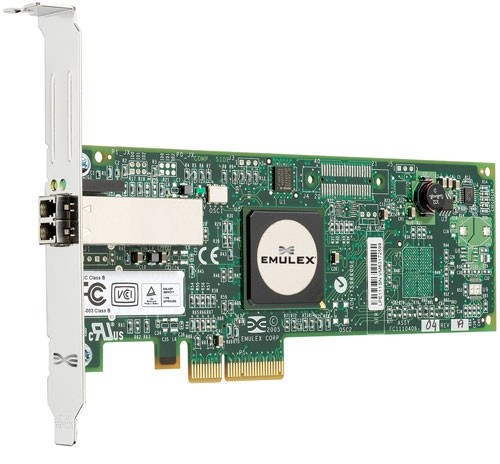

Emulex 1 Port 4GFC Short Wave Optical – LC SFP+

Standards
ANSI Fibre Channel - FC-PH-3, FC-PI-2, FC-FS, FC-AL-2, FC-GS-4, FC-FLA, FC-PLDA, FC-TAPE, FCP-2
Fibre Channel class 2 and 3
PHP hot plug - hot swap
PCI Express base spec 1.0a
PCI Express card electromechanical spec 1.0a

Architecture
Single-channel
4Gb/s, 2Gb/s or 1Gb/s FC Link speeds automatically detected
Up to 16 total port logins available

Comprehensive OS Support
Windows, Linux

Hardware Environments
x86 and x64 processor families

Optical
Data rates: 1.0625, 2.125 and 4.25Gb/s (auto-detected)
Optics: Short wave lasers with LC type connector
Cable: 50/125 microns, up to 150 meters at 4Gb/s 62.5/125 microns, up to 70 meters at 4Gb/s

Physical Dimensions
Short, low profile MD2 form factor card
167.64mm x 64.42mm (6.60” x 2.54”)
Standard bracket (low profile available)

Power & Environmental Requirements
Volts: +3.3
Operating temperature: 0° to 55°C (32° to 131°F)
Airflow required: Natural Convection
Storage temperature: -40° to 70°C (-40° to 158°F)
Relative humidity: 5% to 95% non-condensing

Agency Approvals
Class 1 Laser Product per DHHS 21CFR (J) and EN60825
UL recognized to UL 60950-1
CUR recognized to CSA22.2, No. 60950-1-03
TUV certified to EN60950
    FCC rules, Part 15, Class B
    ICES-003, Class B
    EMC Directive 2004/108/EEC (CE Mark)
EN55022, Class B
EN55024
     Australian EMC Framework (C–Tick Mark) AS/NZS CISPR22, Class B
     VCCI, Class B
     MIC (Korea), Class B
     BSMI (Taiwan), Class B
