LSI SAS 3041E-R

LSI SAS 3041E-R

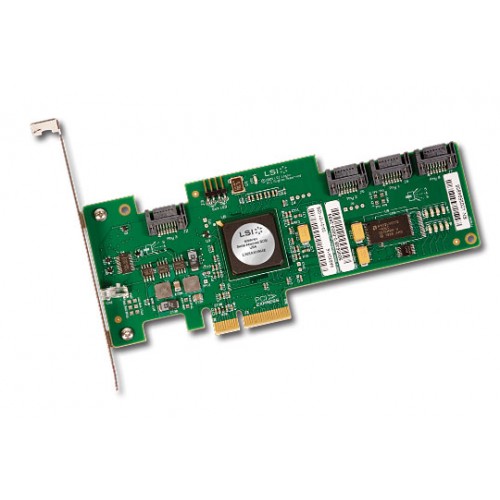

LSI SAS 3041E-R HOST BUS ADAPTER

PCI Bus: 4-lane, 2.5Gb/s PCI Express
PCI Modes: Bus Master DMA
PCI Card Type: +3.3V ±0.3V Add-in Card
PCI Form Factor: 6.6” x 2.5” (MD2 Low-Profile)
PCI Power: 7.5W
Bracket: Full Height and Low Profile
PCI Certification: PCI Express 1.0a
I/O Bus: Four 3Gb/s SAS/SATA Ports
SAS Controller: LSISAS1064E
Connectors
Internal: Four – SATA x1 Connectors
External: N/A
LED Indicators: Internal Activity, per Phy (4) Internal Fault, per Phy (4)
Integrated RAID Levels: RAID 0, 1, 1E and 10E
Environments Operating: 0°C to 60°C, 5 to 90% Non-condensing
Storage: -45°C to 105°C, 5 to 90% Non-condensing
MTFB: >200,000 Hours
Compliances: EMC:EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/ New Zealand (AS/NZS 3548); Safety: EN60950
