QLE2564

QLE2564

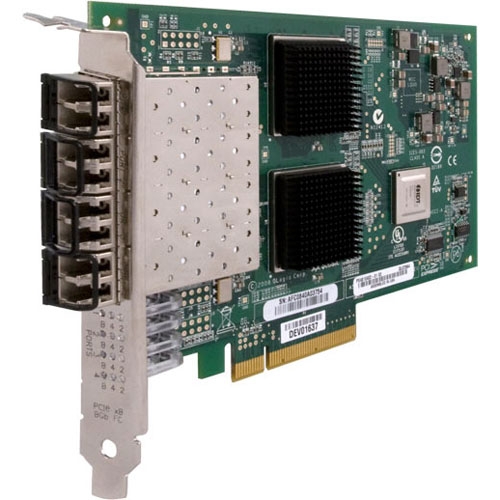

QLogic 8Gbps quad-port Fibre Channel-to-x8/x8 PCI Express adapter, multi-mode optic.

Features
Fibre Channel 8Gb to PCI Express x8
1600 MBps (full-duplex) per port
200,000 initiator and target IOPS
Increased connectivity in 1U servers

Fibre Channel Specifications
Negotiation: 8/4/2Gbps auto-negotiation
IOPS: 200,000 initiator and target IOPS
Class of service: 2 and 3
Topology: FC-AL, FC-AL2, point-to-point, switched fabric
Protocols: FCP-3-SCSI
           FC-Tape (FCP-2)

PCI Express Interface
Compliance: PCI Express Base Specification rev. 2.0
            PCI Express Card Electromechanical Specification rev. 2.0
            PCI Bus Power Management Interface Specification rev. 1.2
            PCI Hot Plug Specification rev. 1.0
Physical and electrical: PCIe x8 physical connector
                         Maximum x8 lanes for Gen1 and Gen2 rates

Platform
Hardware platforms: IA32 (x86), IA64, Intel® 64
                    AMD™ Opteron64
                    Sun™ SPARC®

Tools and Utilities
Management tools: SANsurfer® FC HBA Manager
                  SANsurfer FC HBA CLI
                  Utilities for flashing bootcode
                  Linux scripting tools
                  Windows PowerShell virtual port scripts
Boot support: BIOS, FCode, UEFI, EFI
APIs: SNIA HBA API V2, SMI-S, FDMI
Operating systems: Windows® Server™ 2003, Windows XP Pro x64, Windows Vista™ (Business and Enterprise), Windows Server 2008
                   Solaris™ 10 (x86 and SPARC)
                   Red Hat® AS 5.x, 4.x
                   Novell® SLES 10, 9
                   VMware® ESX Server 3.5 and 3i (targeted versions)
                   NetWare® 6.5

Physical Specifications
Ports: Quad 8Gbps Fibre Channel
       SFP+ with LC-style connector
Form factor: 6.6 in x 4.376 in (167.6 mm x 111.2mm)

Environment and Equipment Specifications
Airflow: No airflow required
Power consumption: 13W (typical)
Temperature: 0 to 55°C (operating), -40 to 70°C (non-operating)
Relative Humidity: 10% to 90% (operating, non-condensing), 5% to 93% (non-operating, non-condensing)
RoHS compliance: RoHS 6

Agency Approvals—EMI and EMC
US/Canada: FCC Part 15, Subpart B, Class A; ICES-003, Class A
Europe: EN55022, Class A
New Zealand/Australia: AS/NZS 3548 Class A
Japan: VCCI V-3/2004.4, Class A
Korea: MIC
Taiwan: BSMI (CNS 13438)

Agency Approvals—Safety
US/Canada: UL, cUL: UL60950, CSA C22.2 No.60950, Class 1 Laser Product per DHHS 21CFR J
Europe: 73/23/ECC Low Voltage Directive: –– TUV: EN60950-1:2001, EN60825-1:1994+A1+A2, EN60825-2:1994+A1
